Stainless Steel Table Bases
All stainless bases are manufactured from #304 grade stainless steel and feature a brushed finish.
SS = Standard Stainless Steel
G = Gold Stainless Steel

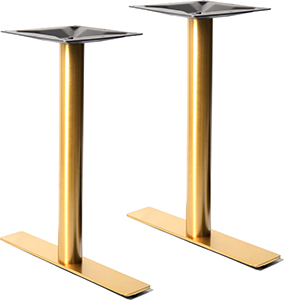

SS10 / G10 Series
Model #: SS10-0522J / G10-0522J |
Model #: SS10-0522H / G10-0522H |
Weight: 18lbs each | Weight: 19lbs each |
Height: 28.75" | Height: 40.75" |
Leveler: 2 | Leveler: 2 |
Column Dimensions: 3" | Column Dimensions: 3" |
Mounting Plate: 12"x12" | Mounting Plate: 12"x12" |
SS14 / G14 Series
Model #: SS14-17D / G14-17D |
Model #: SS14-17H / G14-17H |
Weight: 30lbs | Weight: 32lbs |
Height: 28.75" | Height: 40.75" |
Base Plate: 17" | Base Plate: 17" |
Leveler: 5 | Leveler: 5 |
Column Dimensions: 3" | Column Dimensions: 3" |
Mounting Plate: 12"x12" | Mounting Plate: 12"x12" |
Model #: SS14-23D / G14-23D |
Model #: SS14-23H / G14-23H |
Weight: 50lbs | Weight: 52lbs |
Height: 28.75" | Height: 40.75" |
Base Plate: 23" | Base Plate: 23" |
Leveler: 5 | Leveler: 5 |
Column Dimensions: 3" | Column Dimensions: 3" |
Mounting Plate: 12"x12" | Mounting Plate: 12"x12" |
Model #: SS14-28D / G14-28D |
Weight: 69lbs |
Height: 28.75" |
Base Plate: 29" |
Leveler: 5 |
Column Dimensions: 6.5" |
Mounting Plate: 15"x15" |

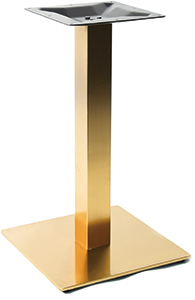

SS05 / G05 Series
Model #: SS05-17D / G05-17D |
Model #: SS05-17H / G05-17H |
Weight: 37lbs | Weight: 39lbs |
Height: 28.75" | Height: 40.75" |
Base Plate: 17"x17" | Base Plate: 17"x17" |
Base Plate Corner to Corner: 24" | Base Plate Corner to Corner: 24" |
Levelers: 4 | Levelers: 4 |
Column Dimensions: 3" | Column Dimensions: 3" |
Mounting Plate: 12"x12" | Mounting Plate: 12"x12" |
Model #: SS05-23D / G05-23D |
Model #: SS05-23H / G05-23H |
Weight: 57lbs | Weight: 59lbs |
Height: 28.75" | Height: 40.75" |
Base Plate: 23"x23" | Base Plate: 23"x23" |
Base Plate Corner to Corner: 33" | Base Plate Corner to Corner: 33" |
Levelers: 4 | Levelers: 4 |
Column Dimensions: 3" | Column Dimensions: 3" |
Mounting Plate: 12"x12" | Mounting Plate: 12"x12" |
